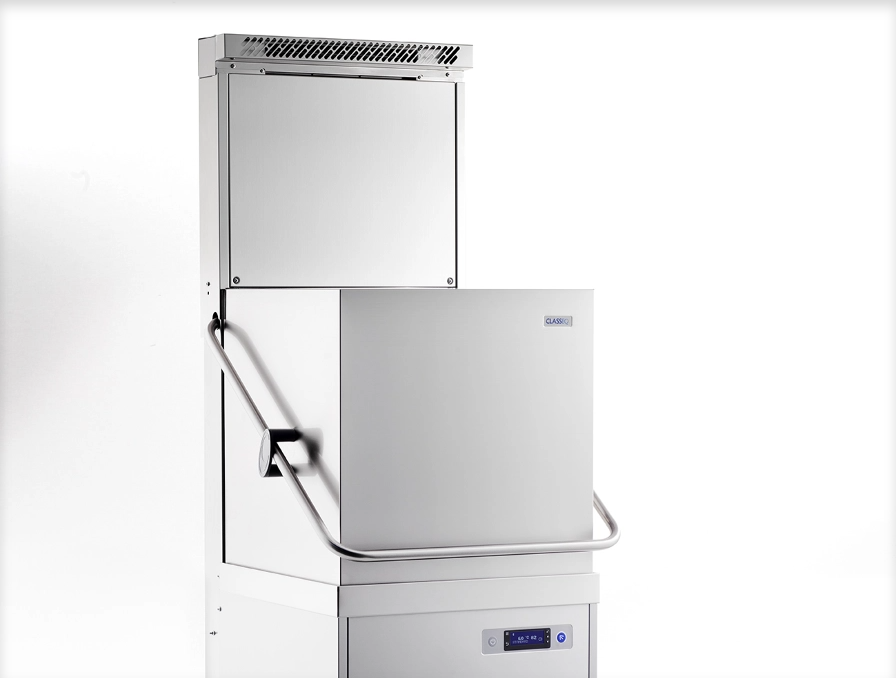

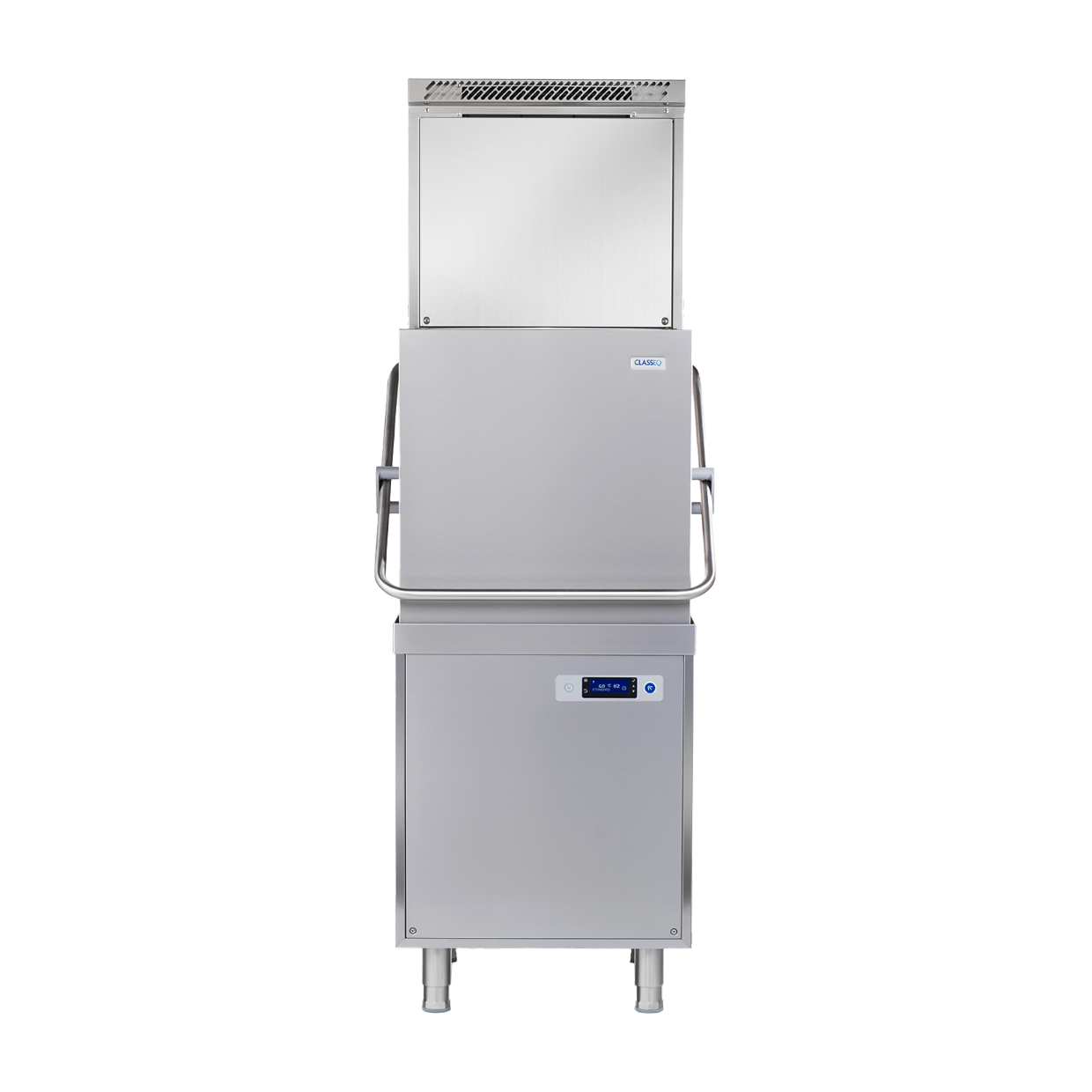

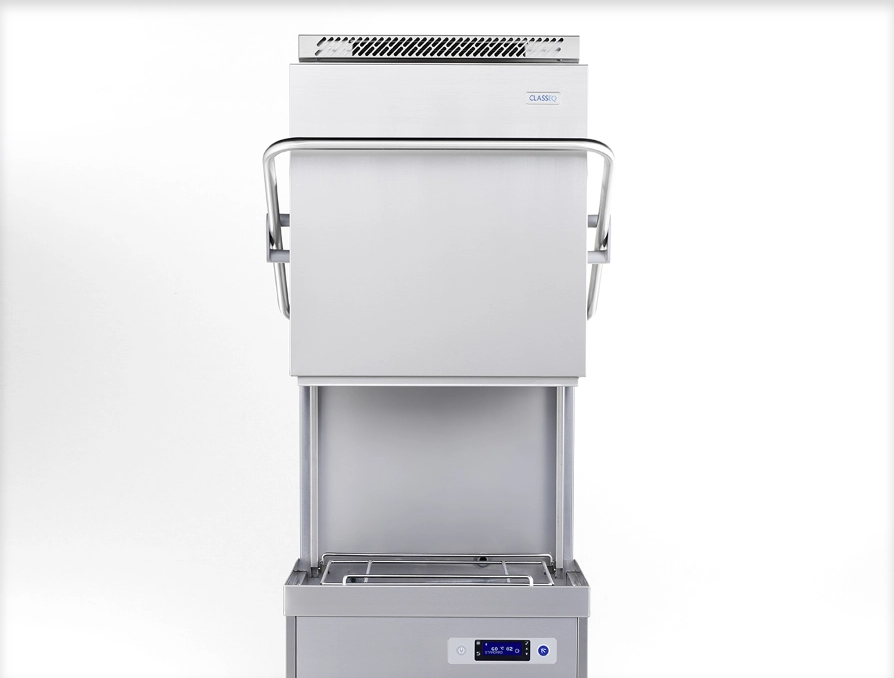

Suitable for both straight-through and corner configurations, it delivers powerful performance with simple, user-friendly operation.

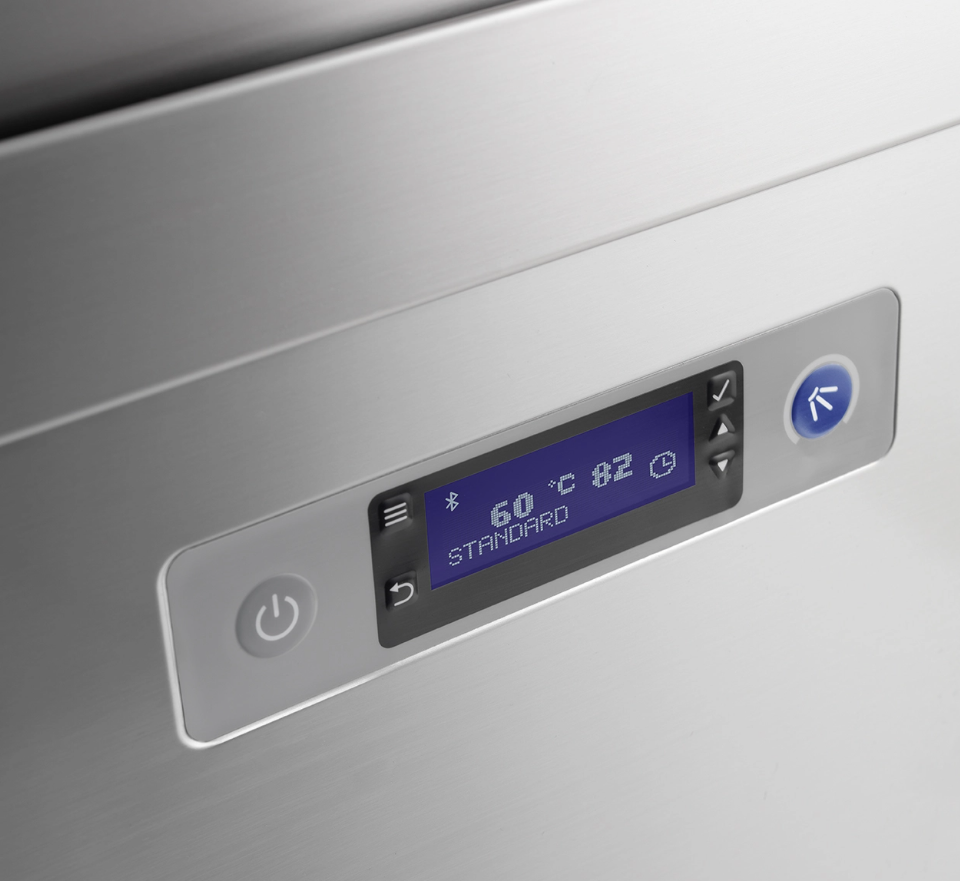

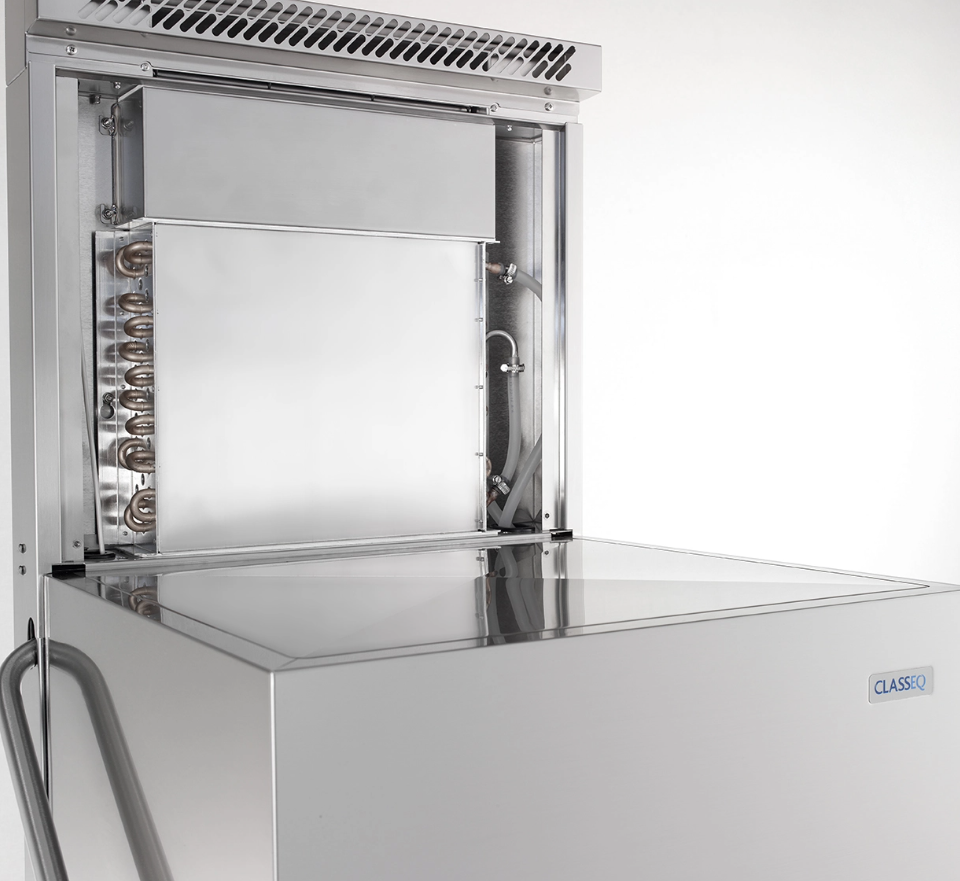

Equipped with an intuitive LCD control panel, digital temperature display, integrated chemical and rinse pumps, and dual filtration, the CP500SR ensures consistently clean results. Its exhaust air heat recovery system reduces steam emissions and energy use, making it certified for operation without mechanical extraction.
Built in the UK and WaterMark approved, the CP500SR combines durability, compliance, and easy maintenance with ‘Click In & Out’ wash fields. It’s the ideal solution for high-volume kitchens wanting reliable performance and lower running costs.
Dimensions
635 mm X 699mm X 1454 - 1514 mm (2012 - 2072mm including Steam Recovery Unit)
Basket Size
500 x 500 mm
Standard Equipment
Rinse booster pump, drain pump & chemicals pumps
Programmes
1.5, 3, 5 & 7 minute cycle
Dimensions
635 mm X 699mm X 1454 - 1514 mm (2012 - 2072mm including Steam Recovery Unit)
Racks / hours
720 plates/hr
Power
Power type 9.6kw 20A 3phase
Width: 635 mm
Height: 1454 mm - 1514 mm (2012 - 2072mm including Steam Recovery Unit)
Depth: 699 mm
Height (Hood Open) : 1940 mm - 1999 mm (2012 - 2072mm including Steam Recovery Unit)
Clear Entry Height: 440 mm
Drain Size: ø 40 mm
Max Drain Height: 600 mm
Basket Size: 500 x 500 mm
Wash Tank Capacity: 28 Litres
Water Consumption Per Cycle* Dish: 3 Litres / 3,8 Litres
Cycle times Glass: 1.5 / 2
Cycle Times Dish / Utensil: 1.5 / 3 / 5 / 7
Theoretical Max. Racks Per Hour: 40 / 20 / 12 / 8
Weight (Net/Gross): 130 Kg / 178 Kg
Wash Temperature Dish / Utensil: 60 °C / 62 °C
Rinse Temperature Dish / Utensil: 82 °C / 85 °C
Rinse Water Consumption: 3L Per Cycle
Connection Point: 3/4 inch (19mm)
Inlet Temperature: 35 °C Max
Flow Rate: 11 Litres / Min
Flow Pressure: 2 Bar
Noise Emission: 70dB(A)
Theoretical Capacity: 720 Plates Per Hour
Hydraulic specifications
Water supply connection: G3/4”
Minimum allowed supply water pressure: 2–6 bar
Required water flow rate: 4 l/min
Electrical specifications
Amps Required: 20 A (3 Phase)
Operating voltage: 380 – 415V 3N~ / 50Hz
Total connected load: 9,6 kW
Optional: Single phase 30 A
Additional Info
Service: Installation
