C500DD

The Versatile Machine That Does It All

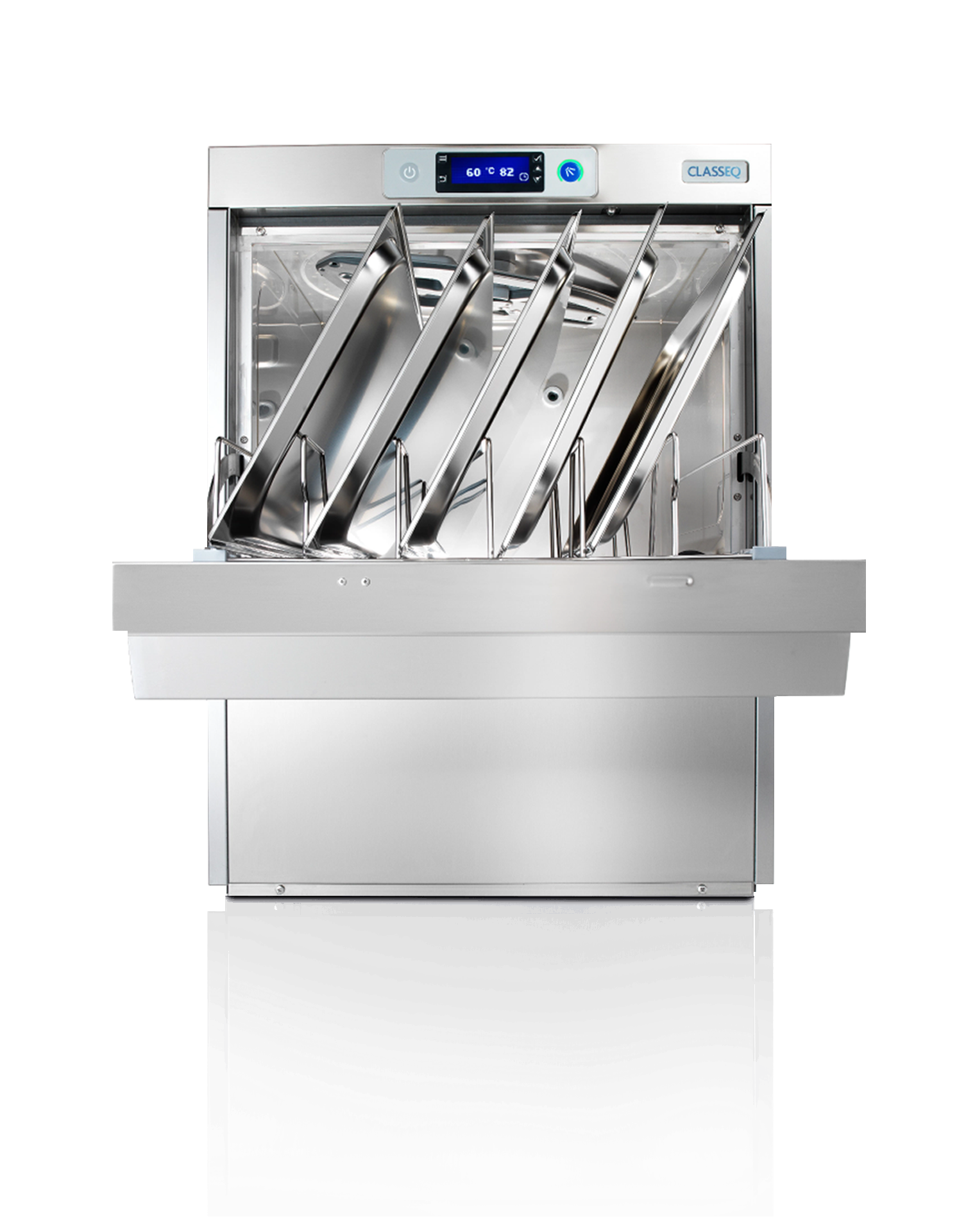

500dd cover

The C500DD from Classeq is engineered to wash trays, sheets, crates, and dishes.

Whether you need to clean 1/1 GN containers or 400 x 600 x 300mm baking trays, the C500DD can accommodate items up to 400 x 600mm, making it ideal for larger washing tasks.

Key Features

Dimensions

600 mm x 850 mm x 671 mm

C500DD Technical Data

Basket Size

500 x 500 mm

Standard Equipment

Drain pump, rinse booster pump, detergent and rinse aid pumps

Programmes

Glass - 1.5 & 2 minute cycles | Dish - 2, 3 & 5minute cycles

Dimensions

600 mm x 850 mm x 671 mm

Basket / Hour

Grates 30 | Trays 150

Power

30 amp or 15 amp single phase | 30 amp 3 phase

C500DD Dimensions

Width: 600 mm

Height: 820 - 850 mm

Depth: 600 mm

Entry Height: 352 mm

Drain Size: 40 mm

Basket Size: 500 mm x 500 mm

C500DD Performances

Glasses per rack: 16

Plates per rack: 9

Wash Programmes - Glass: 1.5 & 2 min. Cycles

Wash Programmes : Dish

Theoretical max. Racks per hour - Glass: 40

Theoretical max. Racks per hour - Dish: 30

Wash Tank Capacity: 9.5 litres

Rinse Tank Capacity: 6.5 litres

Wash Temperature: 60 °C

Rinse Temperature - Glass : 6 kW

Rinse Temperature - Dish : 28 Litres

Water Consumption per Cycle: 2.75 litres

Additional Specifications

Hydraulic specifications

Water supply connection: G3/4” (3/4” BSP)
Required water pressure min/max: 1-10 bar
Incoming water temperature min/max: 4 °C / 55 °C
Optional integrated water softener: Yes

Electrical specifications

15 Amp – 1 Phase
Amps Required: 15 A (1 Phase)
Standard operating voltage: 220 – 240V/ 1N ~ / 50Hz
Total connected load: 2.5 kW

30 Amp – 1 Phase
Amps Required: 30 A (1 Phase)
Standard operating voltage: 220 – 240V/ 1N ~ / 50Hz
Total connected load: 6.5 kW

15 Amp – 3 Phase
Amps Required: 15 A (3 Phase)
Standard operating voltage: 380 – 415V/ 3N ~ / 50Hz
Total connected load: 6.5 kW

Additional Info

Service: Installation

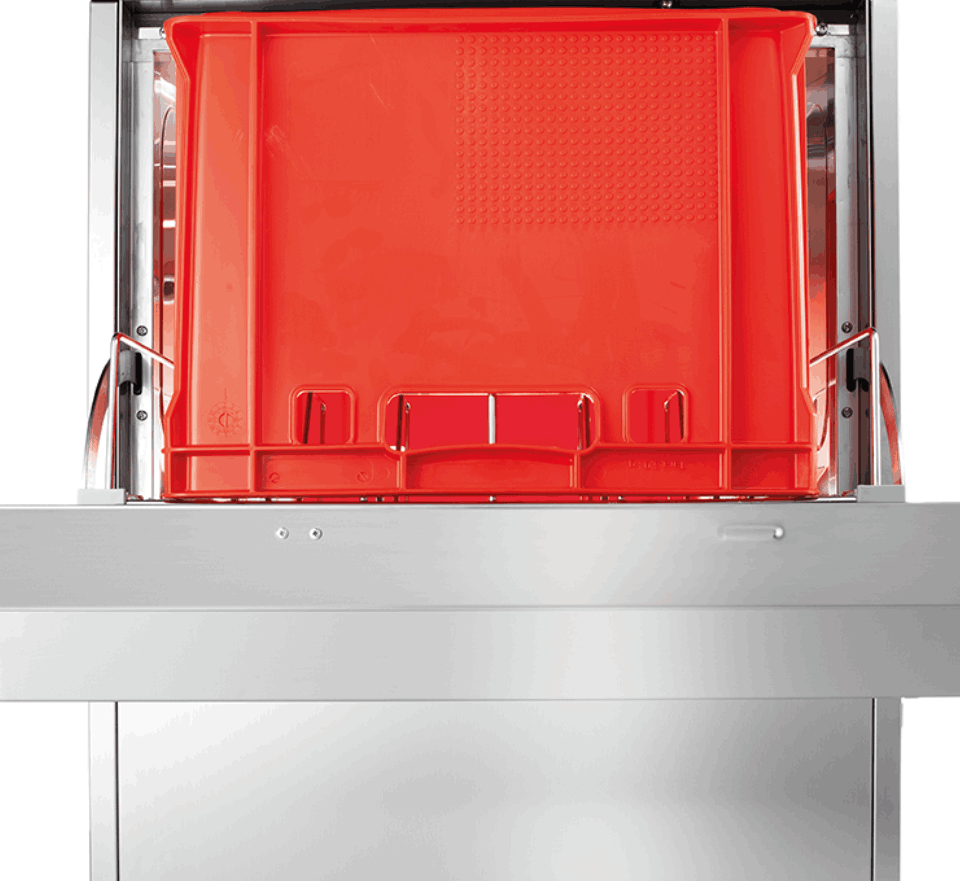

classeq c500dd hero open butcher 0298 RGB 72dpi

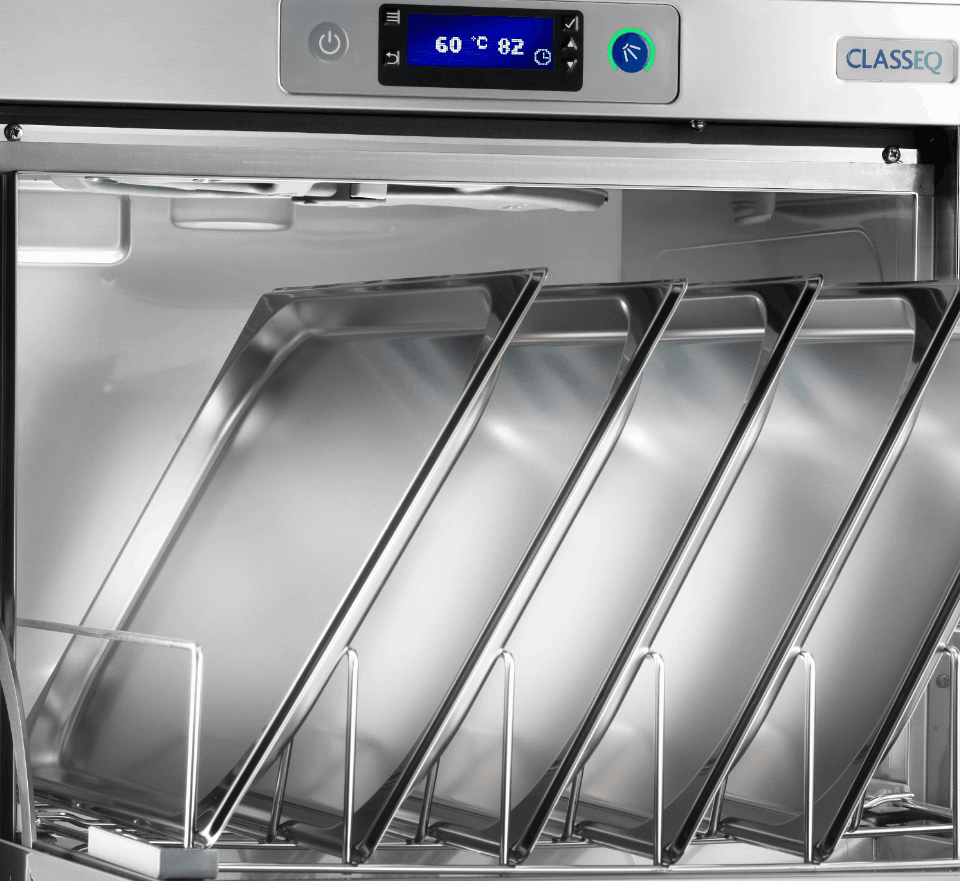

classeq c500dd product trays 0309 RGB 96dpi

Accessories

Simply the Perfect Accessories

...

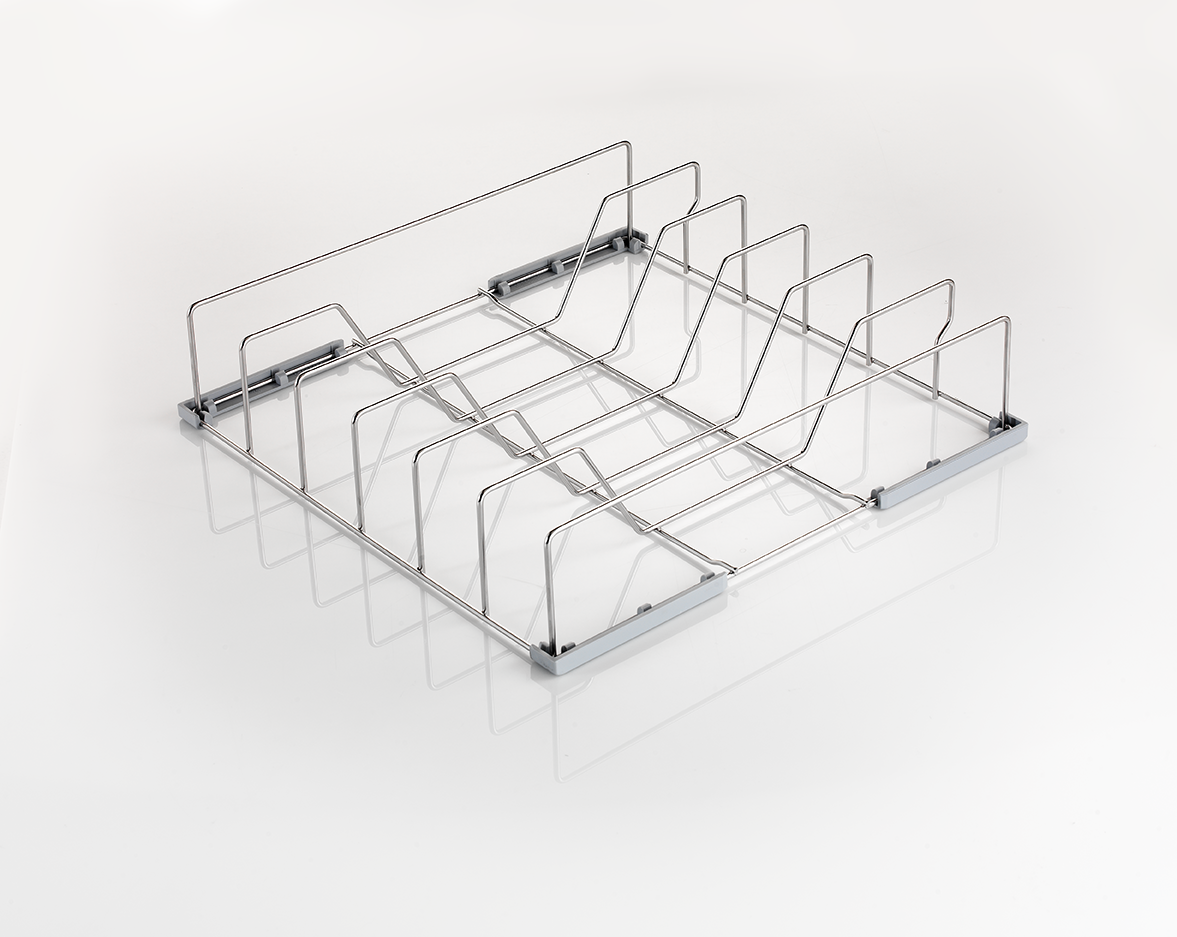

6 Tray rack
Add to cart
...
CBS Cutlery Holder
Add to cart
...
CLASSEQ cutlery tray 8 pieces
Add to cart
...
CLASSEQ plate basket 500 mm
Add to cart
...
CLASSEQ universal basket 500 mm
Add to cart
...
Glass Relax Insert GR 500
Add to cart

Warewashing made simple
